| 主板 | PEN- 7130 |
| Dual Intel? Xeon? processor E5-2600 v4/v3 product family |
| Support 9.6 GT/s QPI Speed |
| Intel? C612 |
| Support IPMI 2.0 |
| 內存 | 16 x 284-pin DDR4 1866/2133 DIMM Sockets, up to 512GB ECC & REG SDRAM |
| LAN | On board 16 x 1G LAN, Intel? i350, support Copper/Fibre ports |
| On board 4 x 10G SFP + Intel? XL710 |
| Support 10/100/1000/10G link speed |
| LAN Bypass: 4 pairs by pass support |
| Two LAN Module slots |

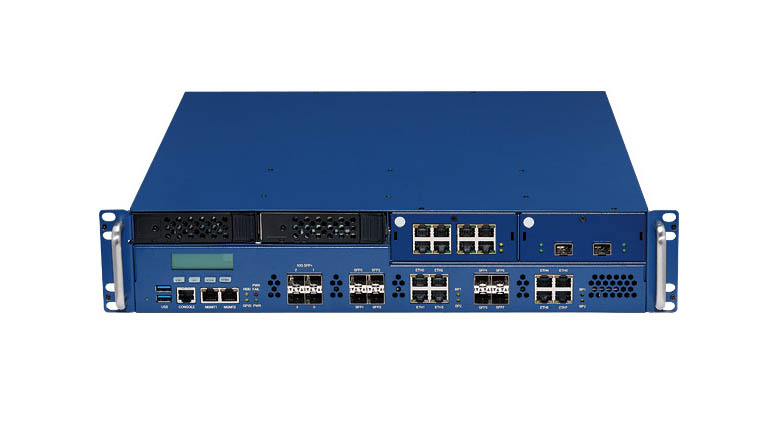

| I/O 前面板接口 | 8 x RJ45, 8 x SFP port, 4 x SFP + ports |
| Support 2 x 20 Characters LCD module, SIO interface |
| Power status/HDD status/LAN status/Bypass status LEDs |
| 2 x 3.5" HDD Swappable bays |
| 2 x LAN Module bays |
| 2 x USB 2.0 ports |
| 1 x RJ45 type Console port |
| 1 x Software button |
| 2 x Management LAN ports |

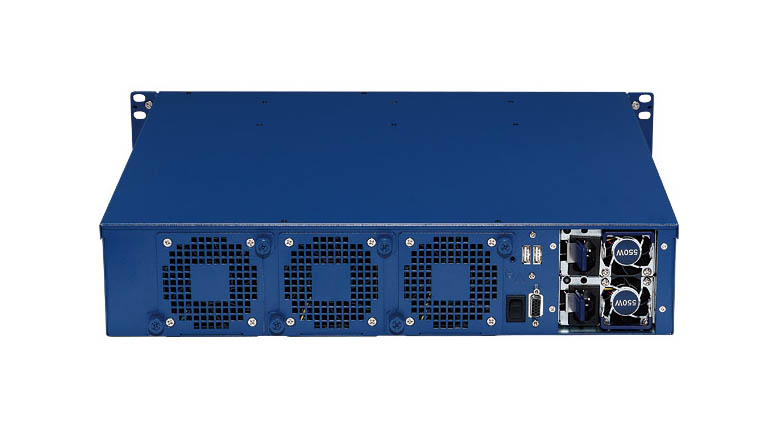

| I/O 后面板接口 | 3 x Swappable System FANs |
| 1 x VGA Port |
| 2 x USB 2.0 ports |
| 存儲 | 1 x on-board CFast socket |
| 電源輸入 | 700W 1+1 CRPS Redundant Power Supply |
| 體積 | Chassis Dimension : 430mm x 450mm x 88mm |
| Carton Dimension : 640mm x 640mm x 310mm |
| 重量 | Without packing: 19kgWith packing: 25kg |
| 環(huán)境 | Operating temperatures: 0°C~40°C |
| Storage temperature: -20°C~75°C |
| Relative humidity: 10%~90% non-condensing |
| 通過認證 | CE approval FCC Class A |
